For 2011-22 Ford 5.0 / 5.2 Coyote Oil Filter Relocation Kit Mustang GT / 150 GT350, & GT500

Part Number: 793945587766
Bull Boost Performance
$149.95 $259.99
| /
This Relocation Kit Fits 4.6 / 5.4 Ford Modular Blocks
Most popular is For Ford Coyote 5.0
Includes -10AN OIL FITTINGS

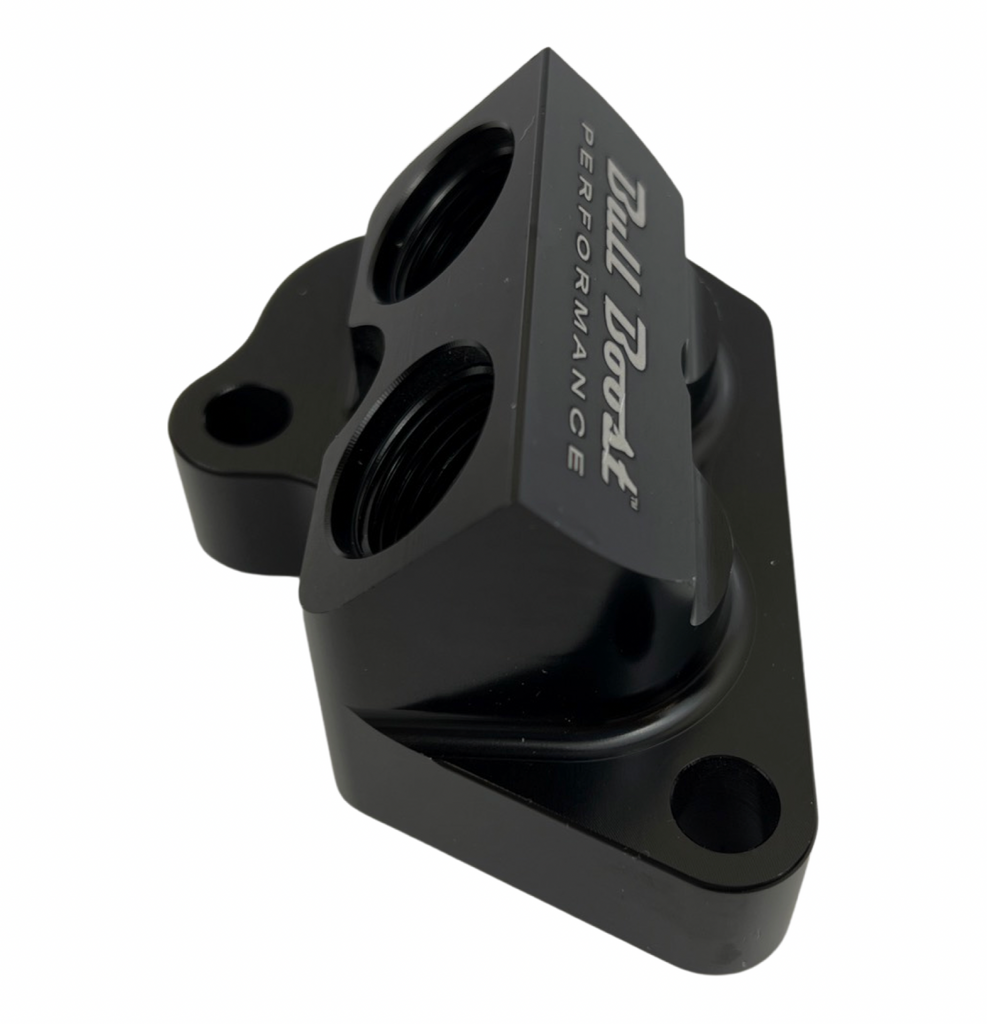

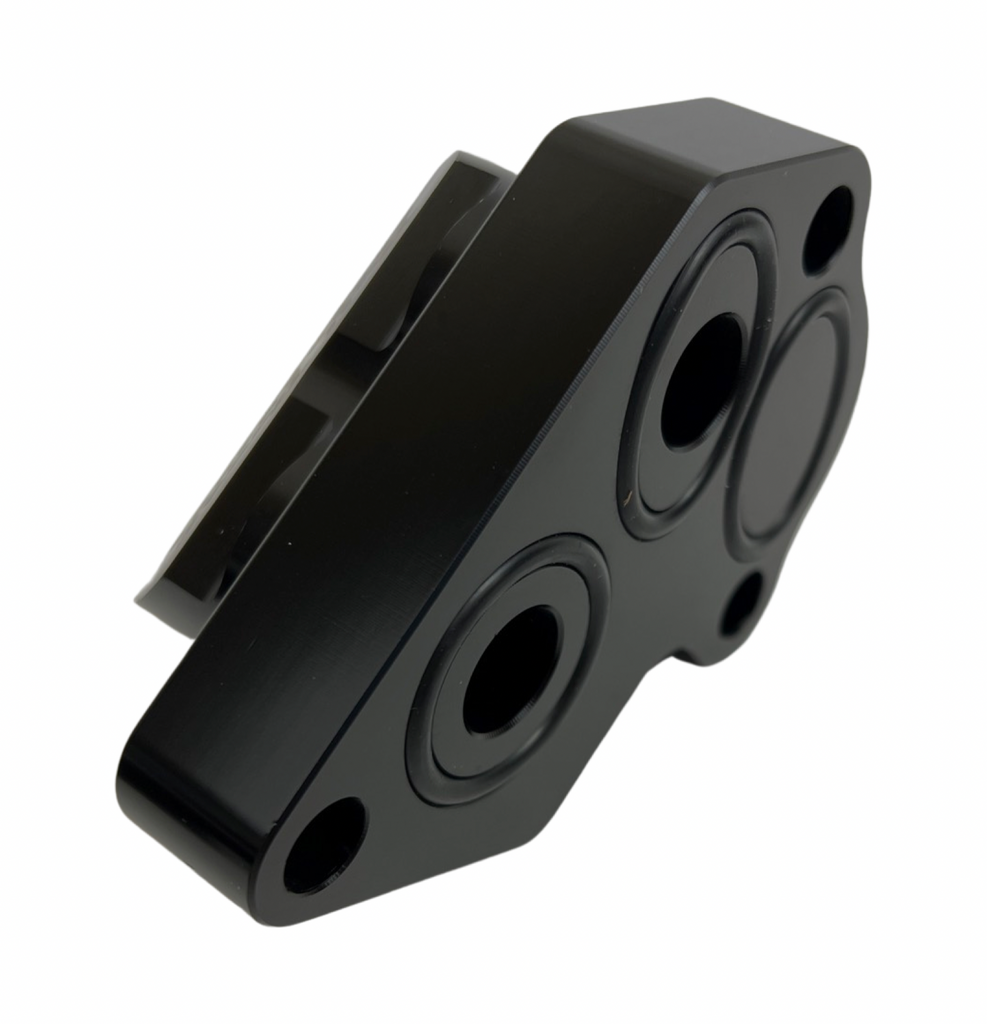

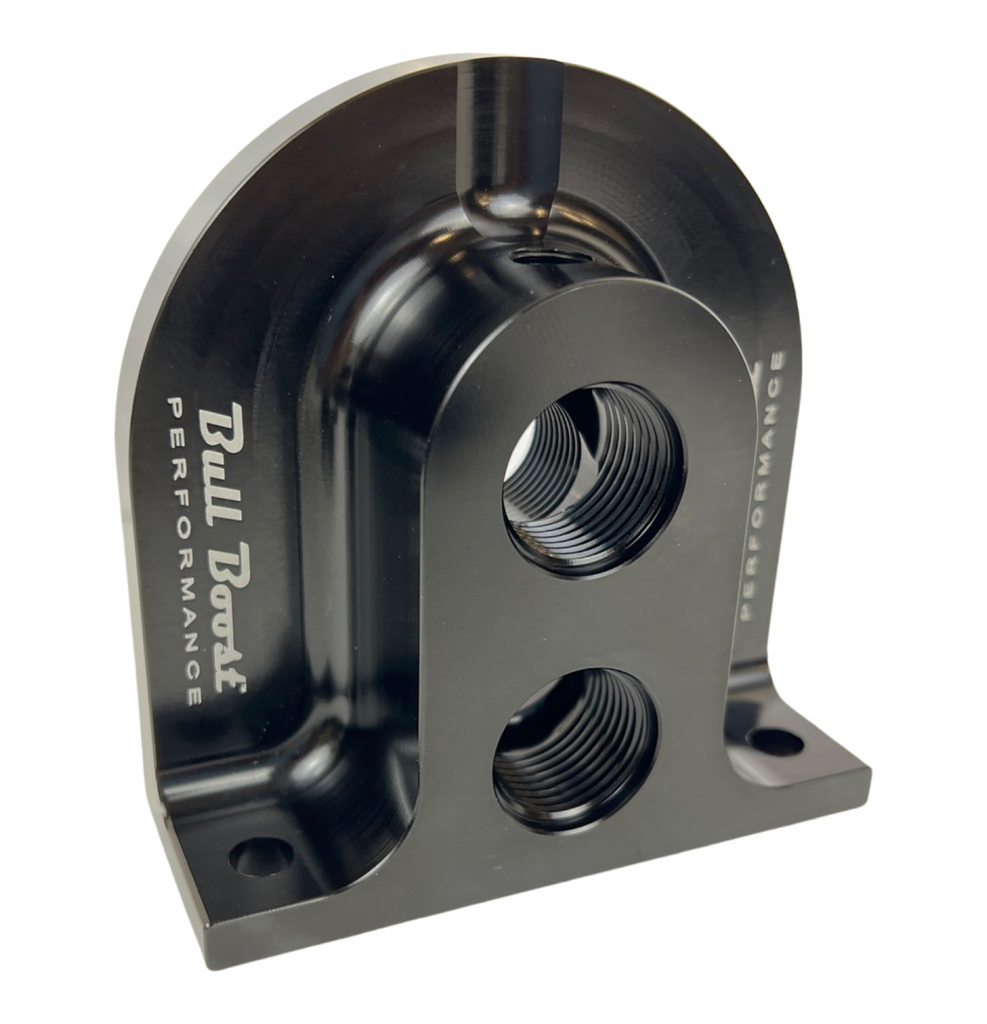

Oil Filter Mounting Bracket and Hardware with -10 AN fittings (also has 1/8npt Oil Pressure fitting)

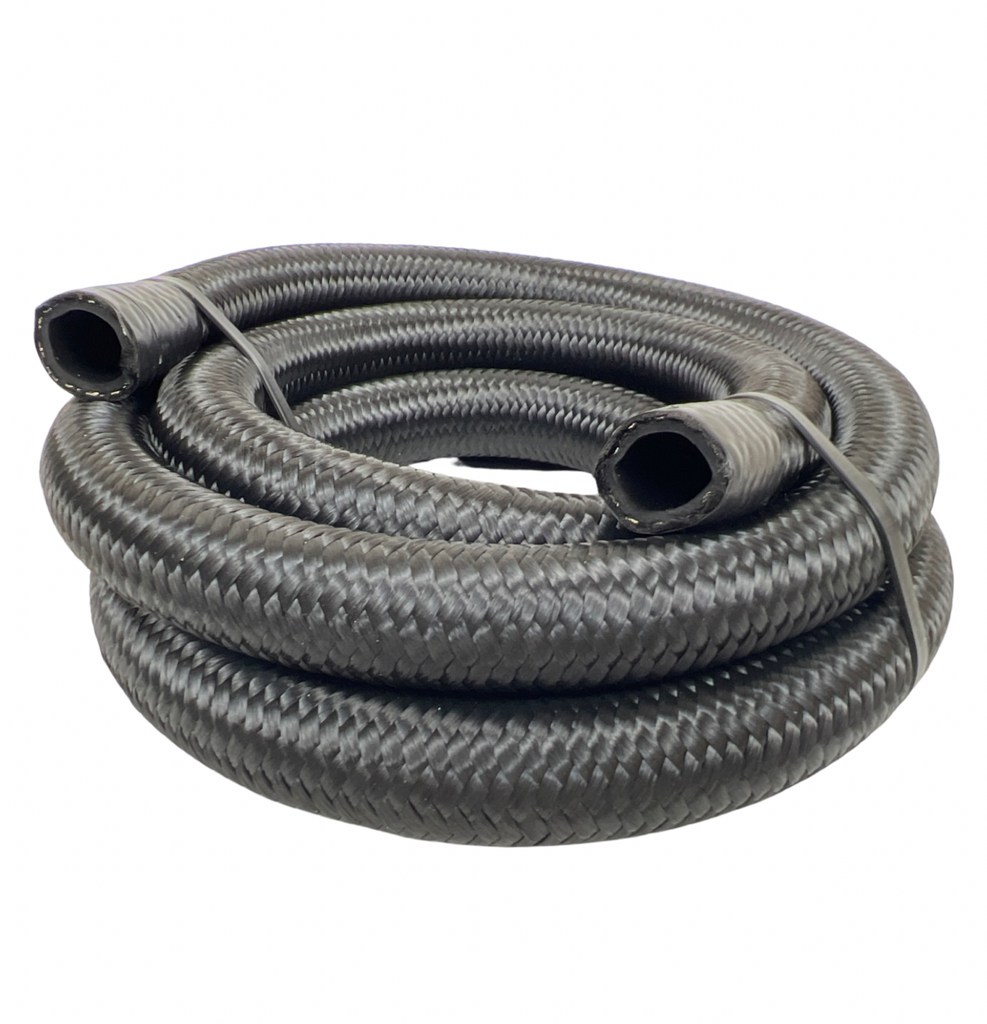

* Includes 6 FT ULTRA HIGH QUALITY BLACK stainless steel braided hose

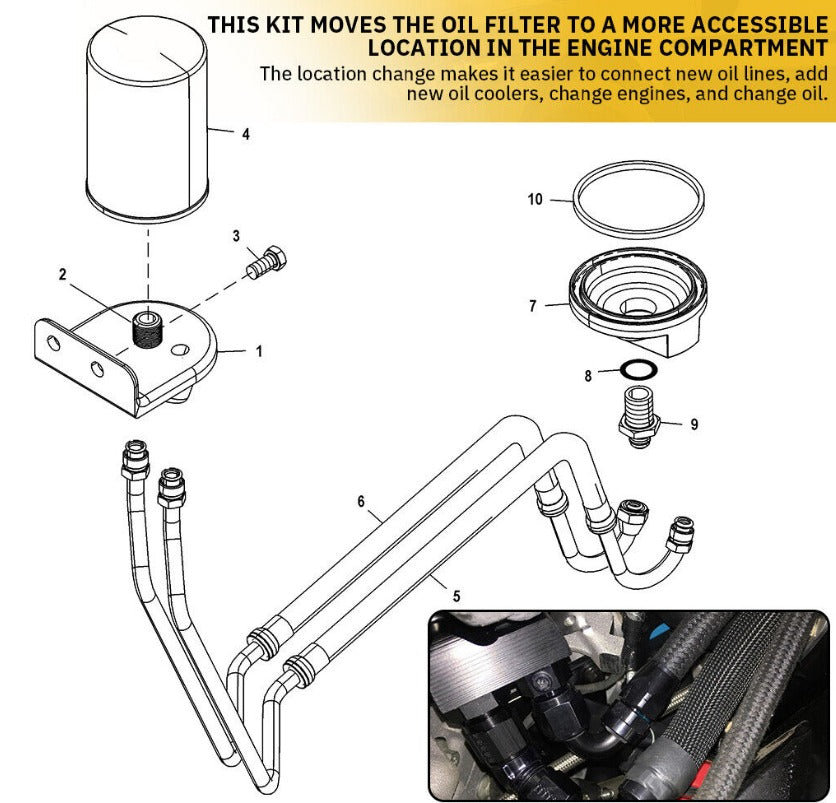

* ALL Parts Shown in picture are INCLUDED
Accepts Fram HP4, HP8, K&N HP2002, Mobil 1 M1-303A, WIX Racing 51060R, Pennzoil PZ-45 / P412 or equivalent Oil Filters
INSTRUCTIONS / CONNECTIONS:

Filter can be mounted sideways or vertically in any location that allow the hoses to fit.

Connections MUST be OUT to IN / IN to OUT !!!!!!!!

NEVER connect in to in or out to out as this will result in low or zero oil pressure and cause engine damage!!!

This is our performance relocation kit in our premium laser printed name

Works With the following Oil filters:

Mobil 1 M1-303A

WIX Racing 51060R

K&N HP2002

Fram HP4 or HP8

Pennzoil PZ-45 / P412

.....or equivalents

Customer Reviews

Based on 3 reviews
33%
(1)
0%
(0)
0%
(0)
33%
(1)
33%
(1)
C
Customer
Do Not use the suggested filters - They don't fit.

I agree with Doug. It clearly uses M20-1.5 threads. All the filters listed here are 13/16-16 threads, which is 0.6mm larger in diameter and doesn't fit securely. Like Doug, the filter will blow off eventually and pump all the oil on the ground. So, here's a secret... Use WIX 51523. After much research, it has the correct sealing dimensions and the correct M20-1.5 threads. Thanks to Doug for saving my engine!

D
Doug Gray

Installed on coyote gen 1 motor in 72 f100 with crown Vic front the part that goes to motor worked great but the part were you install the oil filter doesn’t work it says it uses a 13/16-16 oil filter and it doesn’t I blew the oil filter clean off the first start. The threads are m20-1.5 (Chinese junk) and can’t find a oil filter wide enough so I
Had to buy the mmr kit instead.

R
Roy Newsome
Fill like a jackass

After looking a pictures to see how it installs it fit perfect. Some directions with the kit would be helpful.
