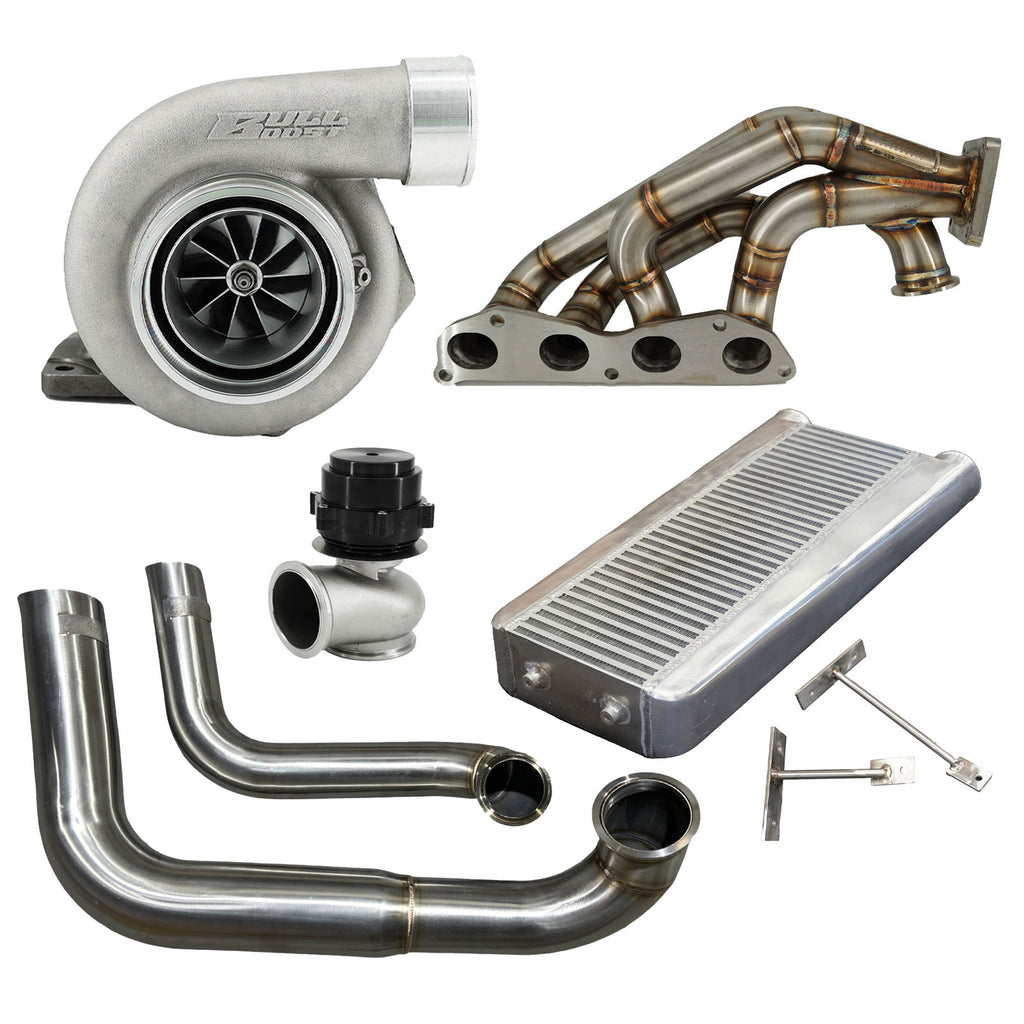

Enhance your K-Series engine swap with this complete turbo kit, designed for peak performance and reliability. Featuring a precision-engineered sidewinder manifold, high-efficiency intercooler, and a powerful GT35 turbocharger, this kit is built for K20 and K24 engines and compatible with popular Honda/Acura chassis such as the Civic EG/EK, Integra DC2, and RSX. Perfect for both street and track applications.

Kit Includes:

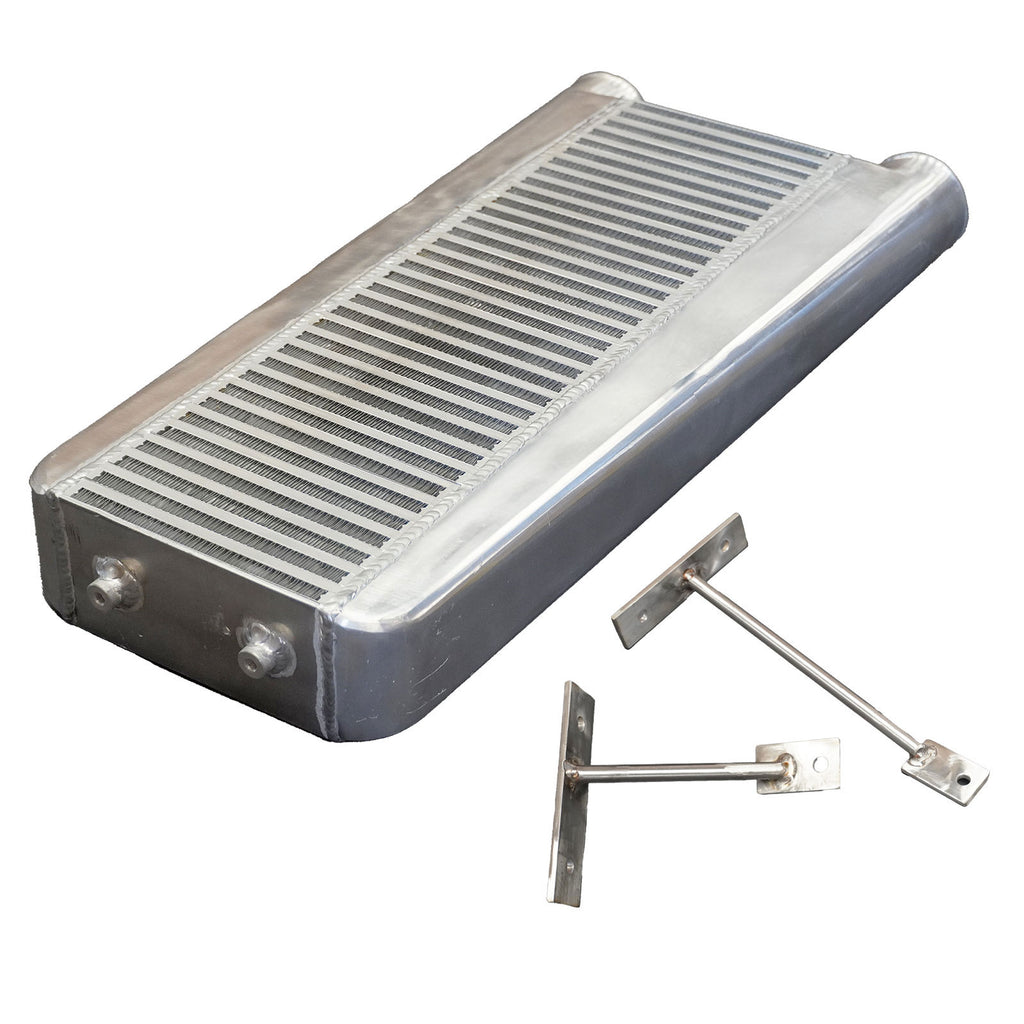

Intercooler Details:

Core Size: 24" x 7" x 3.5"
Overall Size: 27" x 12.5" x 3.5"
Type: Air-to-air, bar-and-plate construction
High-Density Core: Maximizes cooling efficiency for boosted applications
Inlet/Outlet Diameter: 3 inches
Horsepower Rating: 600HP
Manifold Specifications:

Compatibility:

 Fits all Honda K-Series chassis (K-Swaps, CRX, Civic, Integra, EP3, RSX)
Material: 304-grade stainless steel, built to last with a 1-year limited warranty
Durable Construction: CNC machined 1/2-inch thick flange and 8-gauge Schedule 40 pipe for enhanced durability
Design: Low-angle merge collector for optimized flow
Wastegate Flange: 44mm (ideal for Tial and similar wastegates)
Additional Notes: Manifold may require modification or rerouting of coolant lines for fitment

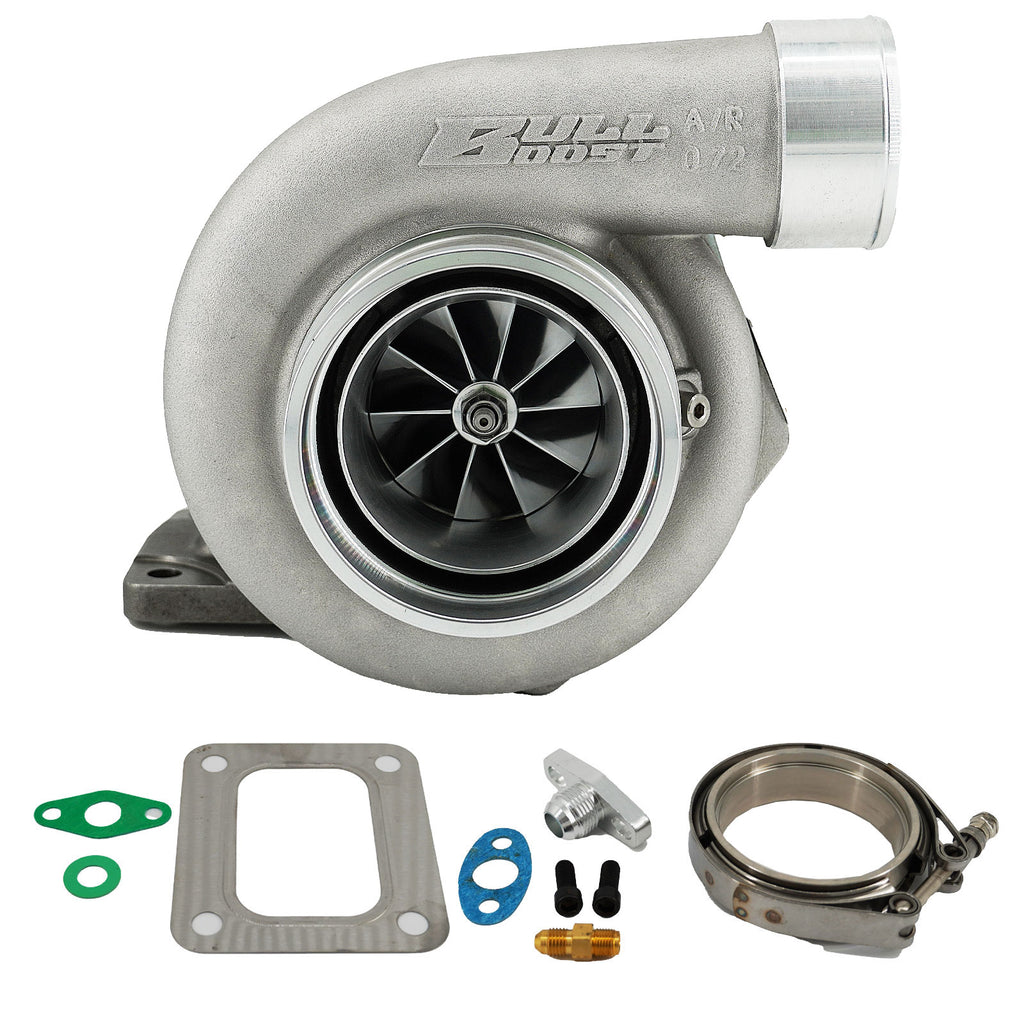

Turbocharger Details:

Compressor Wheel: 65.7mm / 82.6mm / 85.3mm
Compressor Housing: 0.72 A/R Anti-Surge with a 4" inlet and 2.5" outlet
Turbine Wheel: 68mm / 62.3mm
Turbine Housing: T3 inlet, V-Band 3" outlet, A/R 0.82 for superior boost response
Oil Inlet: 7/16-24UNF thread

This K20/K24 turbo kit delivers top-tier power gains and is carefully crafted to enhance airflow, turbo response, and overall engine performance. Built with quality components and detailed for easy fitment, this kit comes ready to transform your Honda K-Series into a boosted powerhouse. Order now to elevate your build!
